DIY Hammock Stand Plans: Dimensions, Lumber, and Hardware You'll Need

DIY Hammock Stand Plans: Dimensions, Lumber, and Hardware You'll Need

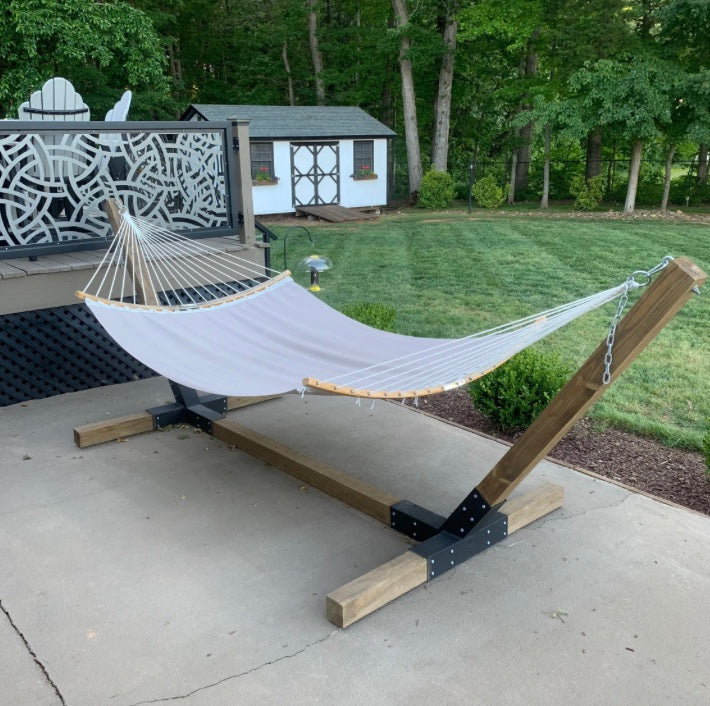

A hammock is one of the simplest outdoor luxuries — but only if you have somewhere sturdy to hang it. If you don't have two conveniently placed trees the right distance apart, a DIY hammock stand solves that problem, and with the right bracket hardware, it's a project you can knock out in an afternoon without any welding or advanced carpentry.

Here's what you need to know before you start.

What You'll Need

  • 2 heavy-duty steel hammock stand brackets (sold as a pair)
  • 4x4 lumber for the base and upright posts
  • Center stretcher board (recommended on longer spans for added rigidity)
  • Lag screws or structural bolts sized to fit the bracket's fastening holes (5/16")
  • Hanging hooks and chains
  • Basic tools: a saw, drill/driver, level, and tape measure

Lumber Length: How Much Do You Need?

This is the question every DIY hammock stand builder asks first, and the honest answer is: it depends on your hammock.

Every hammock is a little different — ring-to-ring length, fabric stretch, and how much sag you want in the finished hang all affect the ideal base length. As a general starting point, many builders use a 7-foot center base beam with two upright end posts, but if your hammock runs long (say, 12 feet ring-to-ring), you may find a full 8-foot 4x4 gives you a better base than a shorter cut.

Our recommendation: before cutting anything, measure your hammock's total ring-to-ring length, then test-hang it (even loosely, between two temporary points) to see how much base length gives you the sag and height you actually want. It's much easier to trim a board shorter than to add length back.

Dimensions of the Bracket Assembly

Our hammock stand brackets are built for standard 4x4 lumber, with the following footprint per bracket:

  • Overall: 17" L x 19-3/4" W x 12-7/8" H
  • Fastening hole size: 5/16"
  • Weight: 16.5 lbs per bracket (sold as a pair, so 33 lbs total in steel)

That weight is a feature, not a drawback — a heavier bracket means a more stable base that won't shift or tip under load.

Step-by-Step Assembly

  1. Cut your lumber. Based on your measured hammock length, cut your center base beam and two upright end posts to size.
  2. Attach the brackets to the base beam. Each bracket wraps around the end of the base beam, with pre-drilled holes for your lag screws or bolts.
  3. Attach the upright posts. The angled arm of each bracket holds the upright post at the correct angle automatically — no need to calculate or cut an angled joint yourself.
  4. Check for level and square. Before fully tightening everything down, make sure your stand is sitting level and both ends are symmetrical.
  5. Tighten all hardware. Go back through every fastening point and confirm everything is snug.
  6. Hang your hammock. Attach your hammock's hooks or chains to the top of each upright post, and you're ready to go.

A Few Things Builders Wish They Knew Beforehand

  • Bring a bracket with you when buying lumber. Standard 4x4 dimensions can vary slightly by supplier, and wet or pressure-treated lumber can swell — testing the fit before committing to a full cut list saves you a headache.
  • Consider your total hammock length carefully. As noted above, sizing the base beam to your specific hammock (rather than a generic length) makes a real difference in how the finished stand feels — both in comfort and stability.
  • Use all the fastening holes, not just some. Even though a stand can technically hold without every hole filled, using the full set gives a noticeably more professional, secure result — and it's a small amount of extra time for meaningfully more rigidity.
  • Think about your ground surface. A hammock stand sitting on grass, gravel, or a hard patio surface will behave differently. If you're on a soft or uneven surface, consider adding weight or anchoring the base to prevent shifting over time.

What's Not Included

The bracket pair gives you the structural connection point, but you'll still need to source separately:

  • The 4x4 lumber itself
  • Lag screws/bolts for fastening
  • Hooks or chain for hanging the hammock
  • The hammock itself

The Bottom Line

A DIY hammock stand is one of the most approachable backyard projects out there — a couple of 4x4 boards, a pair of heavy-duty steel brackets, and an afternoon is really all it takes. Measure your hammock carefully, don't skip the test-fit step, and you'll end up with a stand that's sturdy enough to enjoy for years.

Ready to build yours? Shop our heavy-duty hammock stand brackets, precision-fabricated from 11-gauge steel right here in the USA.
