How to Build a Pergola with 4x4 Posts: A Simple Bracket-Based Method

Building a pergola sounds like a big project — and it can be, if you're cutting joints by hand and hoping your angles line up. But there's a much simpler way to get a strong, square structure without any welding, notching, or specialized carpentry skills: steel brackets.

If you're working with standard 4x4 posts and beams, here's how the whole build comes together.

What You'll Need

Before you touch any lumber, it helps to sketch out your pergola's basic shape and size. Most backyard pergolas fall somewhere between 10x10 and 16x20 feet, but the bracket method scales to whatever size you're planning.

For a standard rectangular pergola, you'll typically need:

• 4x4 pressure-treated posts (for the vertical corner supports)
• 4x4 beams (for the horizontal frame and rafters)
• Corner brackets — one for each of the four top corners
• Foot or wall mount brackets — if you're anchoring posts to a deck, patio, or concrete pad rather than setting them in the ground
• Center support brackets (T, L, or quad, depending on your span) — if your pergola is long enough to need a mid-point brace
• Exterior-rated structural screws or lag bolts sized to fit your bracket's fastening holes

Step 1: Set Your Posts

Start with your vertical 4x4 posts. If you're setting them in the ground, this typically means digging footings below the frost line and setting them in concrete — check your local building code, since frost depth and post-anchoring requirements vary by region.

If you're mounting to an existing deck or concrete pad instead, this is where a foot/wall mount bracket comes in. It bolts directly to your surface and gives the post a stable, elevated base — no digging required. Make sure your posts are plumb (perfectly vertical) before moving on; a level is essential here.

Step 2: Frame the Top with Corner Brackets

Once your posts are set and secure, it's time to build the horizontal frame that sits on top. This is where a corner bracketdoes the heavy lifting — literally. Each corner bracket is a 3-arm, 90-degree connector that ties your vertical post to two horizontal beams at once, locking the corner square without you needing to cut a single notch.

Work one corner at a time:

1. Set the bracket in place over the top of the post.
2. Slide your horizontal beams into the bracket's arms.
3. Fasten through the pre-drilled holes with your structural screws.

Repeat for all four corners, and you'll have a fully framed rectangle sitting on top of your posts.

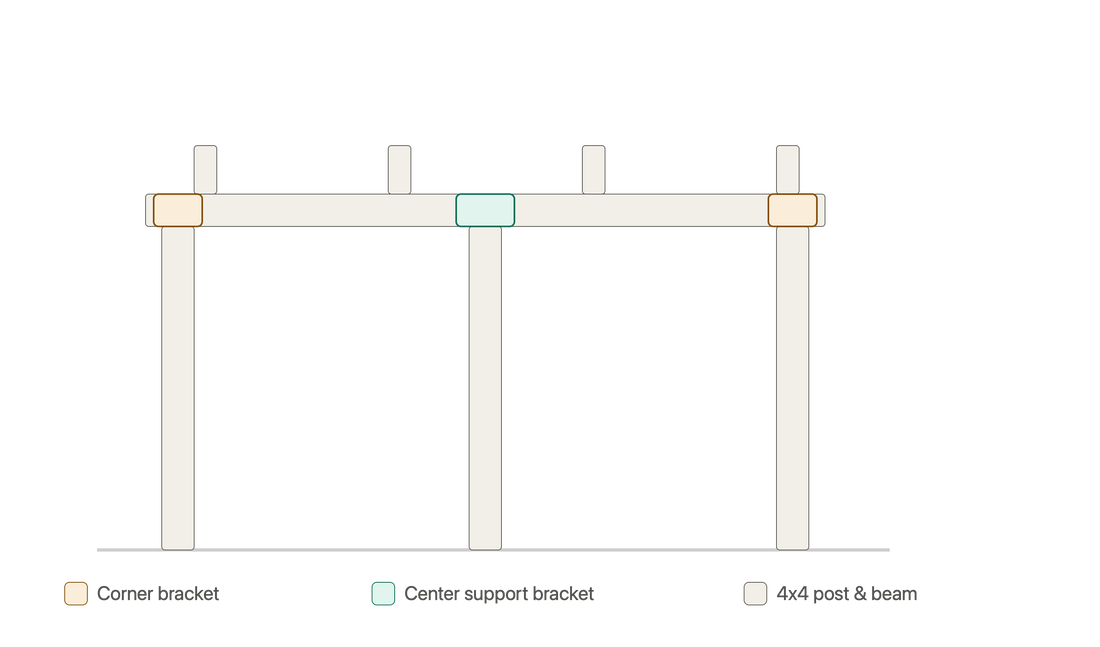

Step 3: Add Center Support (For Longer Spans)

If your pergola run is long — generally anything over 8-10 feet between corners — a straight beam alone can start to sag over time, especially with the added weight of climbing vines, string lights, or a shade sail. This is where a center support bracket earns its keep.

• A T-bracket works well when you need one solid mid-span tie-in without extra arms.
• A quad (4-way) bracket ties a center post into four directions at once — useful if your design includes a center post reaching the ground.
• A 5-way bracket is the maximum-strength option, for larger builds or anywhere you want the most rigid mid-span connection possible.

Which one you need really comes down to your pergola's layout — if you're not sure, it's worth sketching your design and counting how many directions actually need to tie into that center point.

Step 4: Add the Rafters

With your main frame square and supported, you can add the rafters — the evenly spaced boards that run across the top and give your pergola its classic look. These typically rest on top of the frame and can be secured with simple screws or additional brackets, depending on the spacing and overhang you want.

Step 5: Add Any Finishing Touches

This is where you can customize:

• Want shade without a full roof? A sun sail attachment bracket gives you a clean mounting point for a shade sail.
• Want a decorative touch at the gable ends? A gable/fan bracket adds an architectural detail while still providing structural support.

A Few Tips Before You Start

• Bring a bracket with you when buying lumber. Pressure-treated 4x4s can vary slightly in actual dimension, and wet or "green" lumber swells — testing the fit before you commit to a full lumber order can save you a headache later.
• Don't skip the exterior-rated hardware. Standard interior screws will rust and fail outdoors. Stick to structural screws or lag bolts rated for exterior use.
• Check local codes before you dig. Some municipalities have specific requirements for freestanding structures, especially around footing depth and property line setbacks.

The Bottom Line

The bracket method turns what used to be a weekend of complicated joinery into a straightforward assembly project — no welding, no notching, and no need for advanced carpentry skills. With the right brackets for your post size and span, you can build a pergola that's square, solid, and built to last for years.
