Pergola Bracket Types Explained: Corner, T, L, Quad, and 5-Way
If you're planning a pergola build and browsing bracket hardware for the first time, the number of options can be a little overwhelming. Corner, T, L, quad, 5-way — what's actually the difference, and how do you know which one your project needs?
Here's a breakdown of each bracket type, what it's built for, and when you'd reach for it.

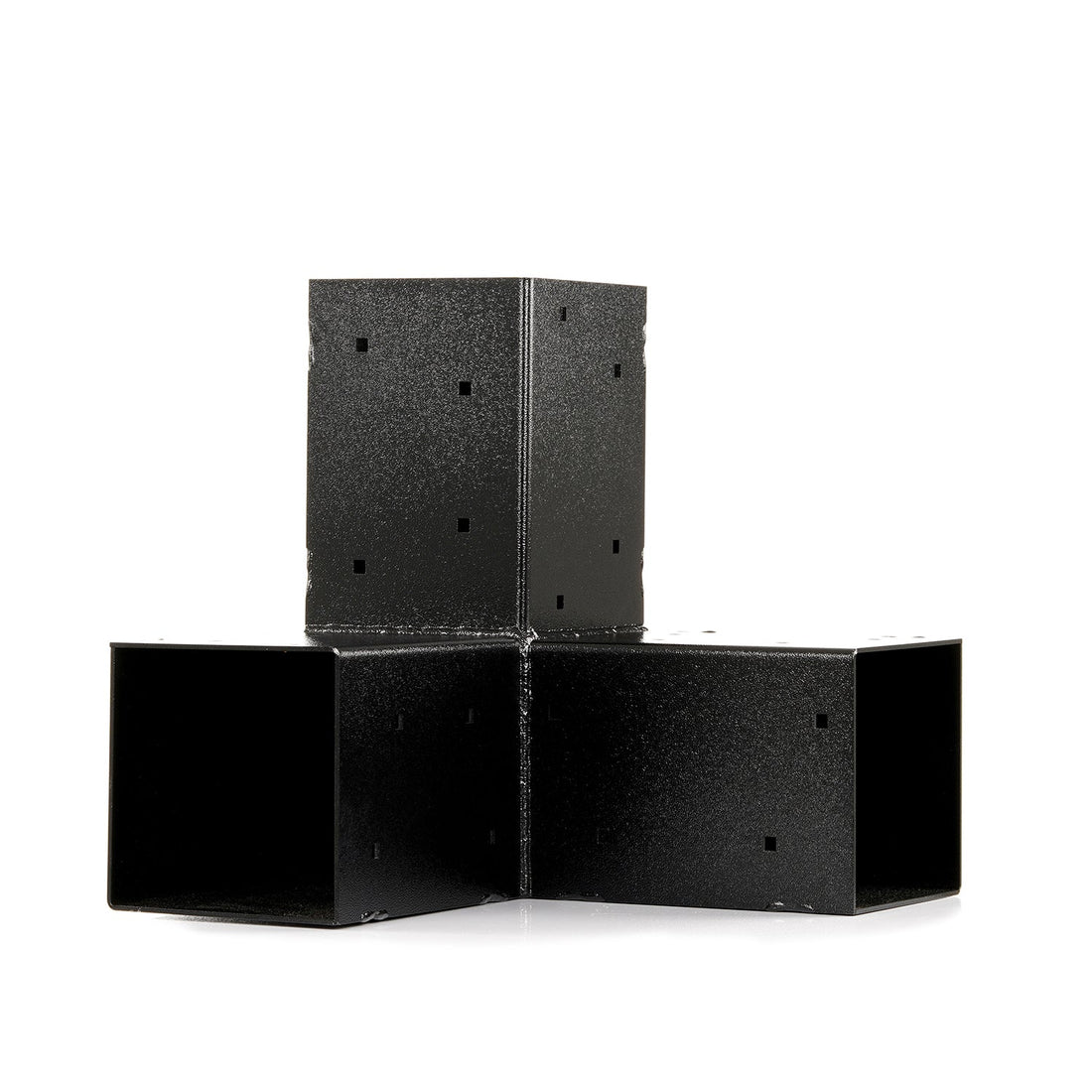

Corner Bracket (3-Arm, 90°)
What it does: Connects a vertical post to two horizontal beams at a 90-degree angle, locking a corner square.
When you need it: Every standard rectangular pergola needs one at each of its four top corners. This is the bracket that holds your overall frame shape — without it (or an equivalent joint), your structure has nothing keeping it square.
Available in: 4x4 and 6x6 post sizes.
T-Bracket
What it does: Ties a center post into a long horizontal beam run, without the extra arms of a quad or 5-way bracket.
When you need it: If your pergola has a long horizontal span and needs a mid-point tie-in, but that center point doesn't require connections in more than two directions, a T-bracket is the more efficient choice — you're not paying for or installing hardware you don't need.
Available in: 4x4 and 6x6 post sizes.
L-Bracket (90° Elbow)
What it does: A simple two-arm, 90-degree elbow connector.
When you need it: L-brackets are useful outside the standard rectangular pergola frame too — extending a structure in a new direction, framing a swing, or turning a corner on a privacy wall. Think of it as the corner bracket's simpler sibling: same 90-degree logic, fewer connection points.
Available in: 4x4 and 6x6 post sizes.
Quad Bracket (4-Way)
What it does: Connects a center post in four directions at once — ties into both the vertical post and the horizontal beams running through it.
When you need it: Longer pergola runs need mid-span support to prevent sagging over time. If your design includes a center post that reaches the ground (rather than just a horizontal support point), a quad bracket gives you a fully braced four-way connection at that post.
Available in: 4x4 and 6x6 post sizes.
5-Way Bracket
What it does: The maximum-connection option — ties a center post into five directions at once.
When you need it: For larger pergolas or anywhere you want the most rigid possible mid-span connection, the 5-way bracket gives you the strongest tie-in in the lineup. If you're building big and want the extra structural margin, this is the one to reach for.
Available in: 4x4 and 6x6 post sizes.
Beyond the Core Five: Other Brackets Worth Knowing
While corner, T, L, quad, and 5-way brackets handle the main frame, a few other brackets solve specific problems:
- Foot/wall mount bracket — anchors a post to a deck, concrete pad, or wall instead of setting it in the ground. Available for standard 4x4 and 6x6 lumber, plus a version sized for true mill-cut 6x6 timber.
- Gable/fan bracket — adds both function and a decorative architectural detail to 2x6 or 2x8 lumber, often used on porch or pergola gable ends.
- Sun sail attachment bracket — gives you a dedicated mounting point for attaching a shade sail to your pergola posts.
- 2x4 upper and side mount brackets — smaller, versatile connectors for framing and support runs using 2x4 lumber.
How to Decide What You Need
A simple way to plan your bracket order:
- Count your corners. Every 90-degree corner in your main frame needs a corner bracket (or an L-bracket, if it's a simpler two-arm connection).
- Measure your spans. Any horizontal run longer than roughly 8-10 feet benefits from a mid-span support — count how many directions that support point needs to tie into (2 = T-bracket, 4 = quad, 5 = 5-way).
- Plan your base. Setting posts in the ground is one option, but if you're mounting to a deck or concrete pad, add foot/wall mount brackets to your list.
- Add any extras. Want shade? Add a sun sail bracket. Want a decorative gable detail? Add a gable bracket.
The Bottom Line
Every bracket in the lineup solves a specific structural problem — corners hold your frame square, T/quad/5-way brackets brace long spans, and foot/wall mounts anchor your base. Once you know what each one does, picking the right hardware for your build comes down to simply counting your joints and spans.
Browse the full lineup of pergola brackets to find exactly what your build needs, all precision-fabricated from heavy-gauge steel, made in the USA.
