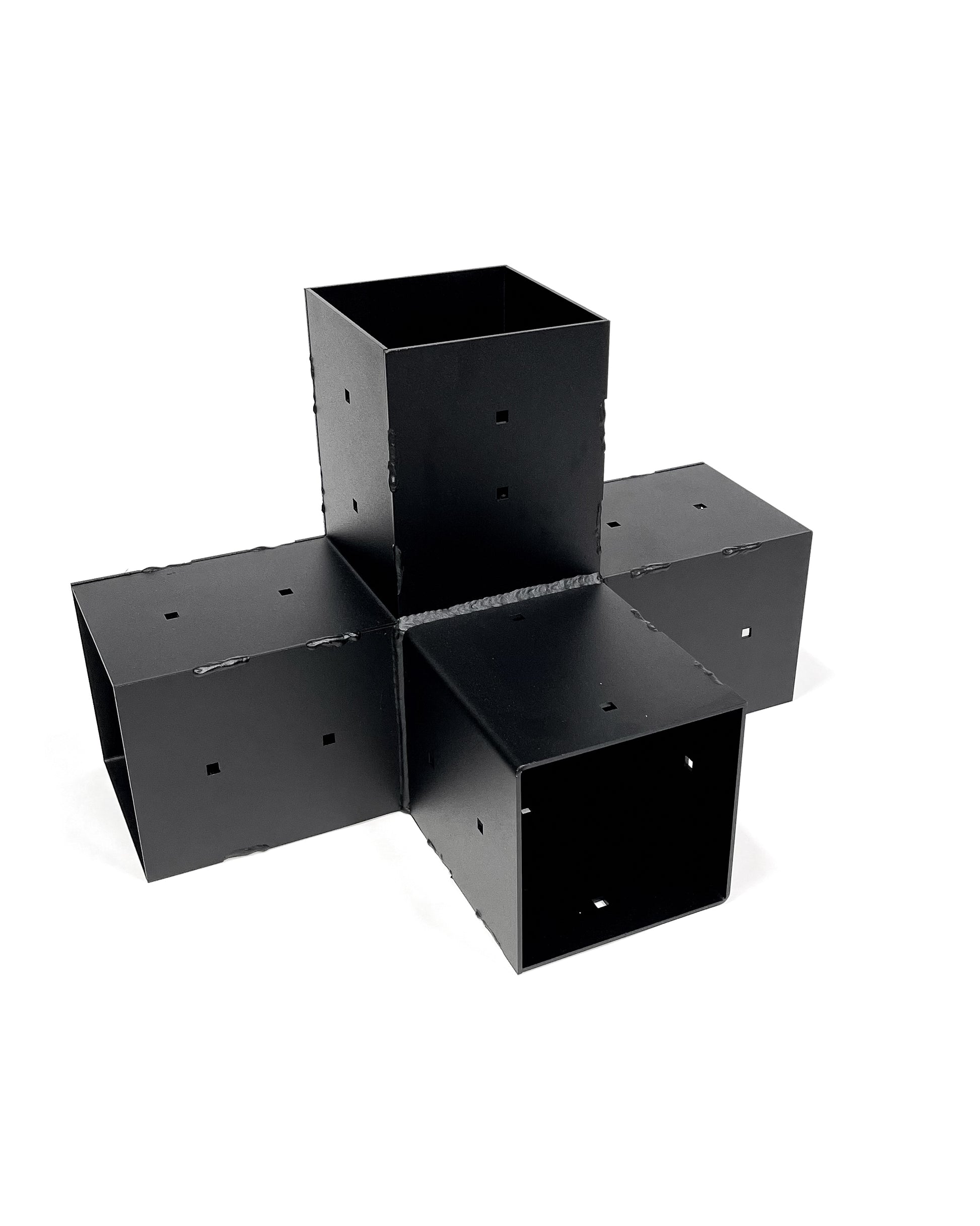

Pergola Support Bracket/ 4-Arm for 4 x 4 Posts---QUAD

Overview:

4-arm/quad bracket which acts as a center support brace between 2 posts for extra support both vertical and horizontally.

Features:

-11 ga US Steel.

-Thicker/stronger than the competition.

-U.S. made

-Multiple fastening locations

-Quality welds

-Architectural grade powder coat

-Precision- state of the art machining/fabricating

Specs:

Arm Length: 6”

Gauge: 11ga

Hole Opening: (Inside): 3-5/8”

Hole Opening: (Outside): 3-7/8”

Hole Fastening Size: 5/16”

Weight: 13.0 pounds/Ea

Tips:

-Make sure lumber is as dry as possible. Wet wood swells and may swell too much to be able to insert into bracket.

-If possible, take a bracket with you to the store to test fit.

-All fastening holes do not need to be used. 3 on each leg is plenty to secure in place.

Included:

1-Quad bracket

Not Included:

-Lumber

-Fastening Hardware
